Validation Against Mantid

Here we check that using the appropriate abinslib features we can obtain very close agreement with output from the Mantid Abins v1 algorithm.

Setup and Data Fetching

First, we fetch the necessary reference data. This includes the input phonon modes and corresponding JSON spectra generated by simulations in Mantid. To see the exact settings in Mantid, examine the validation workflows at https://github.com/ISISNeutronMuon/abINS_lib/tree/main/dev/validation .

from euphonic import QpointPhononModes, Quantity, Spectrum1D
from euphonic.plot import plot_1d_to_axis
import matplotlib.pyplot as plt
import numpy as np

from abinslib.almost_isotropic_incoherent import (
    calculate_almost_isotropic_incoherent_spectra,
    mantid_like_combination_spectra,
)
from abinslib.data import get_validation_data
from abinslib.displacements import Displacements
from abinslib.isotropic_incoherent import q_scaling_isotropic_incoherent_spectra
from abinslib.util import apply_weights, calculate_indirect_q2

# Get QpointPhononModes object from validation dataset
input_file = get_validation_data("ethanol_qpoint_phonon_modes.json")
modes = QpointPhononModes.from_json_file(input_file)

# Set some calculation parameters
temperature = Quantity(10, "kelvin")

# TOSCA kinematic constraints (Backscattering, Ef = 32 cm^-1).
# The odd value of backscattering angle for validation is related to
# Mantid-Abins implementation history; 135° is fine for normal calculations.
angle = 134.98885653282196 * np.pi / 180
final_energy = Quantity(32.0, "cm_1").to("hartree")

# Prepare displacement data
displacements = Displacements.from_modes(modes, temperature=temperature)
dw = displacements.to_atomic_displacements()


def plot_validation_comparison(
    abins_spectrum: Spectrum1D,
    mantid_spectrum: Spectrum1D,
    abins_label: str,
    mantid_label: str,
    title: str,
    xlim: float,
    width: Quantity = Quantity(1, "meV"),
) -> None:
    """Plot two spectra for comparison.

    Fixed-width Gaussian broadening is added as a visual aid and approximation
    to instrumental resolution.
    """
    fig, ax = plt.subplots()
    plot_1d_to_axis(abins_spectrum.broaden(width), ax, label=abins_label)
    plot_1d_to_axis(
        mantid_spectrum.broaden(width), ax, linestyle="--", label=mantid_label
    )

    ax.legend()
    ax.set_title(title + f"\n{width:~P} broadening")
    ax.set_xlim(0, xlim)
    ax.set_xlabel("Energy transfer / meV")
    ax.set_ylabel("$S(\\omega)$ / barn meV$^{-1}$")
    ax.set_yscale("log")

    fig.tight_layout()
    plt.show()

Isotropic Fundamentals

For the fully isotropic fundamental spectrum, we apply Q^2 and Debye-Waller terms to the binned data, so provide Q^2 values for the bin-centre energies.

mantid_iso_file = get_validation_data("ethanol_mantid_isotropic_fundamentals.json")
mantid_iso = Spectrum1D.from_json_file(mantid_iso_file)
bins = mantid_iso.get_bin_edges(restrict_range=False)

q2_iso = calculate_indirect_q2(
    mantid_iso.get_bin_centres(),
    angle=angle,
    final_energy=final_energy,
)

spectra_iso = q_scaling_isotropic_incoherent_spectra(
    modes, displacements, dw, q2_iso, bins
)
abinslib_iso = apply_weights(spectra_iso).sum()

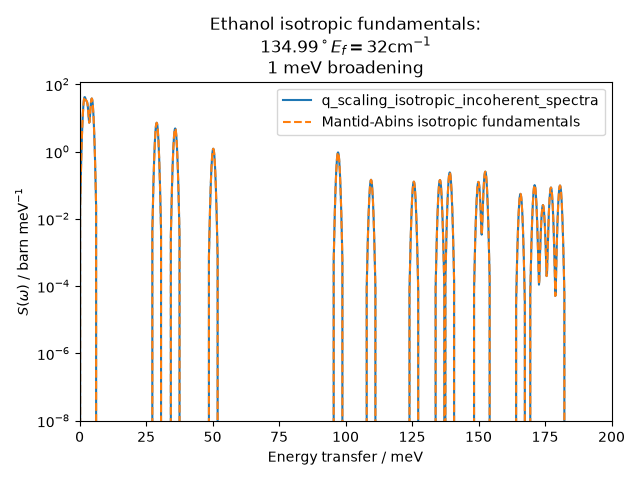

plot_validation_comparison(
    abins_spectrum=abinslib_iso,
    mantid_spectrum=mantid_iso,
    abins_label="q_scaling_isotropic_incoherent_spectra",
    mantid_label="Mantid-Abins isotropic fundamentals",
    title=(
        "Ethanol isotropic fundamentals:\n"
        r"$134.99^\circ E_f = 32 \mathrm{cm}^{-1}$"
    ),
    xlim=200,
)

Found reference data for C to match input symbol C with mass 12.0107.
Found reference data for C to match input symbol C with mass 12.0107.
Found reference data for O to match input symbol O with mass 15.999400000000003.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.

Almost-Isotropic Fundamentals

For the almost-isotropic fundamentals, the $Q^2$ scaling relies on the individual mode frequencies rather than the binned energy transfer centres.

mantid_almost_iso_file = get_validation_data(
    "ethanol_mantid_almost_isotropic_fundamentals.json"
)
mantid_almost_iso = Spectrum1D.from_json_file(mantid_almost_iso_file)
bins = mantid_almost_iso.get_bin_edges(restrict_range=False)

q2_almost_iso = calculate_indirect_q2(
    modes.frequencies,
    angle=angle,
    final_energy=final_energy,
)

spectra_almost_iso = calculate_almost_isotropic_incoherent_spectra(
    modes, displacements, dw, q2_almost_iso, bins
)
abinslib_almost_iso = apply_weights(spectra_almost_iso).sum()

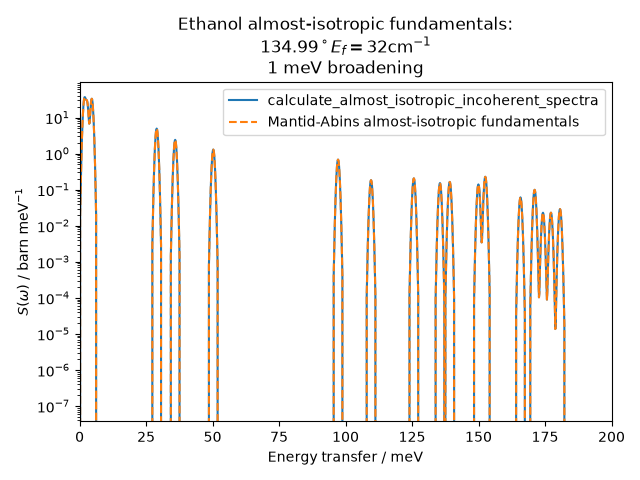

plot_validation_comparison(
    abins_spectrum=abinslib_almost_iso,
    mantid_spectrum=mantid_almost_iso,
    abins_label="calculate_almost_isotropic_incoherent_spectra",
    mantid_label="Mantid-Abins almost-isotropic fundamentals",
    title=(
        "Ethanol almost-isotropic fundamentals:\n"
        r"$134.99^\circ E_f = 32 \mathrm{cm}^{-1}$"
    ),
    xlim=200,
)

Found reference data for C to match input symbol C with mass 12.0107.
Found reference data for C to match input symbol C with mass 12.0107.
Found reference data for O to match input symbol O with mass 15.999400000000003.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.
Found reference data for H to match input symbol H with mass 1.00794.

Second-Order Spectra

Second-order incoherent-approximation spectra with Mantid-like implementation. Q^4 scaling and Debye-Waller factor are applied to the data after binning, so we need to provide Q^2 values for the bins rather than combination mdoes.

mantid_second_order_file = get_validation_data("ethanol_mantid_second_order.json")
mantid_second_order = Spectrum1D.from_json_file(mantid_second_order_file)
bins = mantid_second_order.get_bin_edges(restrict_range=False)

q2_second_order = calculate_indirect_q2(
    mantid_second_order.get_bin_centres(),
    angle=angle,
    final_energy=final_energy,
)

spectra_second_order = mantid_like_combination_spectra(
    modes, displacements, dw, q2_second_order, bins
)
abinslib_second_order = apply_weights(spectra_second_order).sum()

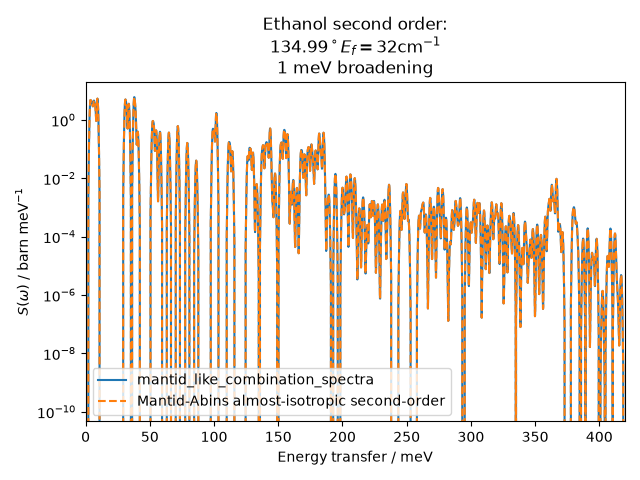

plot_validation_comparison(
    abins_spectrum=abinslib_second_order,
    mantid_spectrum=mantid_second_order,
    abins_label="mantid_like_combination_spectra",
    mantid_label="Mantid-Abins almost-isotropic second-order",
    title=(
        "Ethanol second order:\n"
        r"$134.99^\circ E_f = 32 \mathrm{cm}^{-1}$"
    ),
    xlim=420,
)
